Zen Attached Pergola Bracket Kit for Wood Rafters
This is a pergola bracket kit for a six-post, house-attached structure with wood roof rafters. The Zen Pergolas kit is listed for a four-block layout with an overall footprint up to 24 × 24 feet. It supplies steel brackets and stainless steel wood screws for creating an outdoor seating or dining alfresco area using separately purchased lumber.
Bracket size options
- 4x4 and 2x4: post brackets for the listed 4x4 lumber size and rafter brackets for the listed 2x4 size.
- 6x6 and 2x6: post brackets for the listed 6x6 lumber size and rafter brackets for the listed 2x6 size.
Match the selected bracket option to the manufacturer’s lumber specifications before purchasing wood.

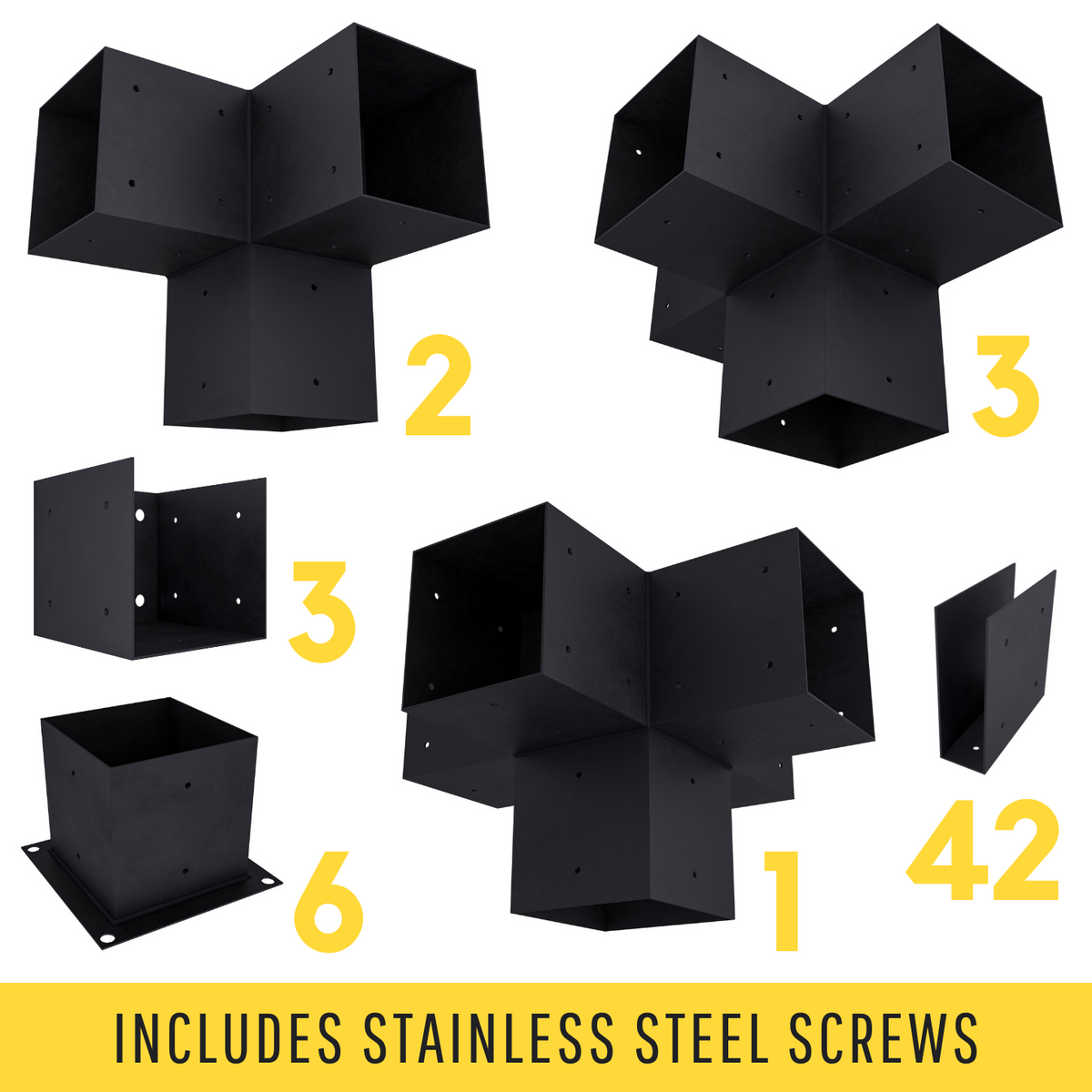

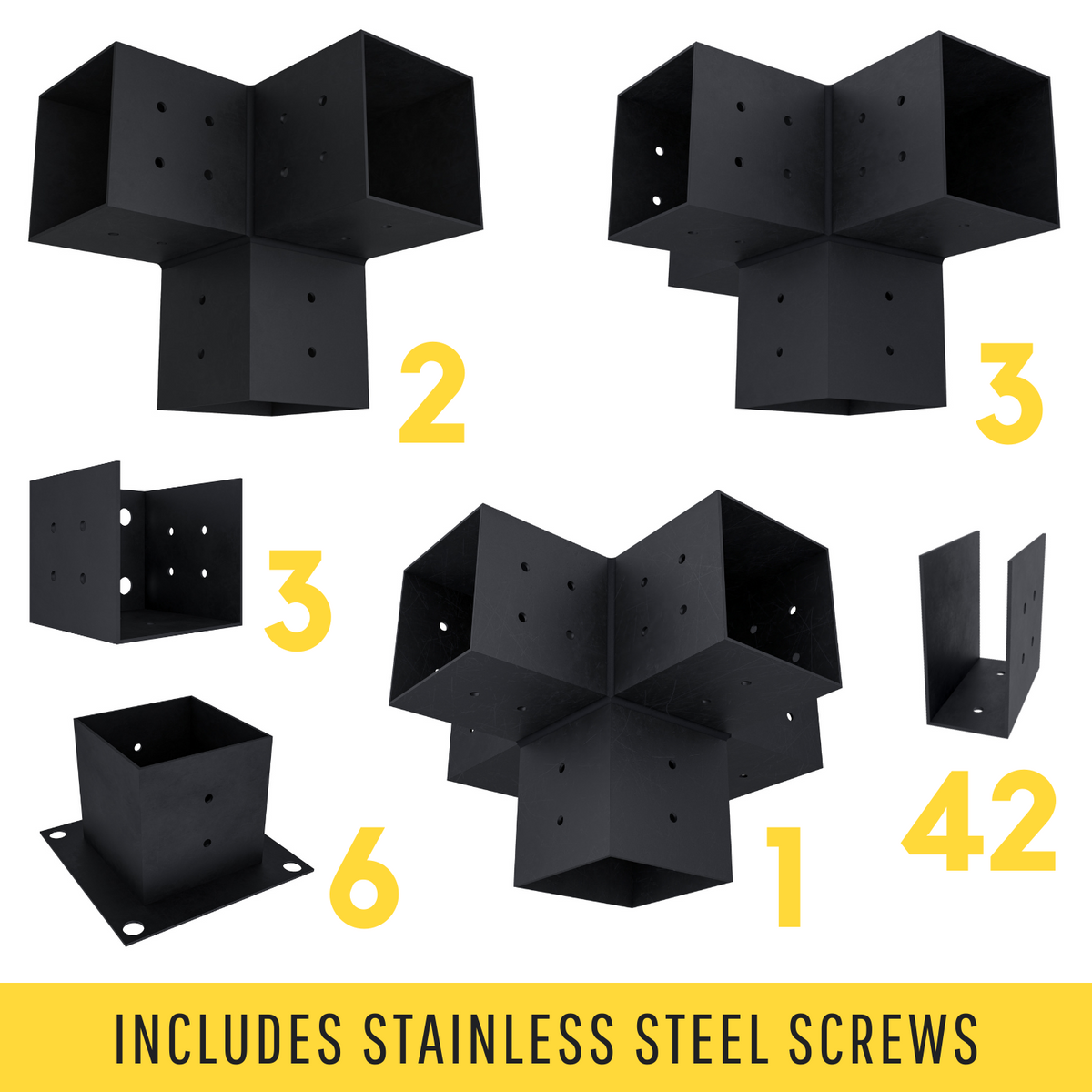

Included components
- 6 post-base brackets.
- 3 wall-mount brackets.
- 2 corner three-arm brackets.
- 3 middle four-arm brackets.
- 1 central five-arm bracket.
- 42 roof-rafter brackets.
- Stainless steel #12 wood screws.
Bracket construction
- Steel brackets with a powder-coated finish.
- Laser-cut, laser-welded and pre-drilled, as described in the current listing.
Purchased separately
Lumber, ledger boards, wall-anchoring hardware and ground anchors are not included. This is not a complete wood pergola, solid roof or waterproof covering. Shade canopies are not listed among the supplied components.
Installation planning
Follow the manufacturer’s instructions for the selected bracket kit. Confirm the planned layout, lumber requirements, wall attachment and post-base anchoring before installation. The listed maximum footprint is not a load rating or a guarantee of suitability for every site.
Shipping & Returns
Review our Shipping Policy and Return Policy before ordering.
Frequently asked questions
Is this a freestanding kit?
No. It is configured for a house-attached structure with six posts and three wall-mount brackets.
Does it include wood?
No. Lumber is purchased separately.
Does it include a waterproof roof?
No. It provides brackets for an open wood-rafter overhead structure.

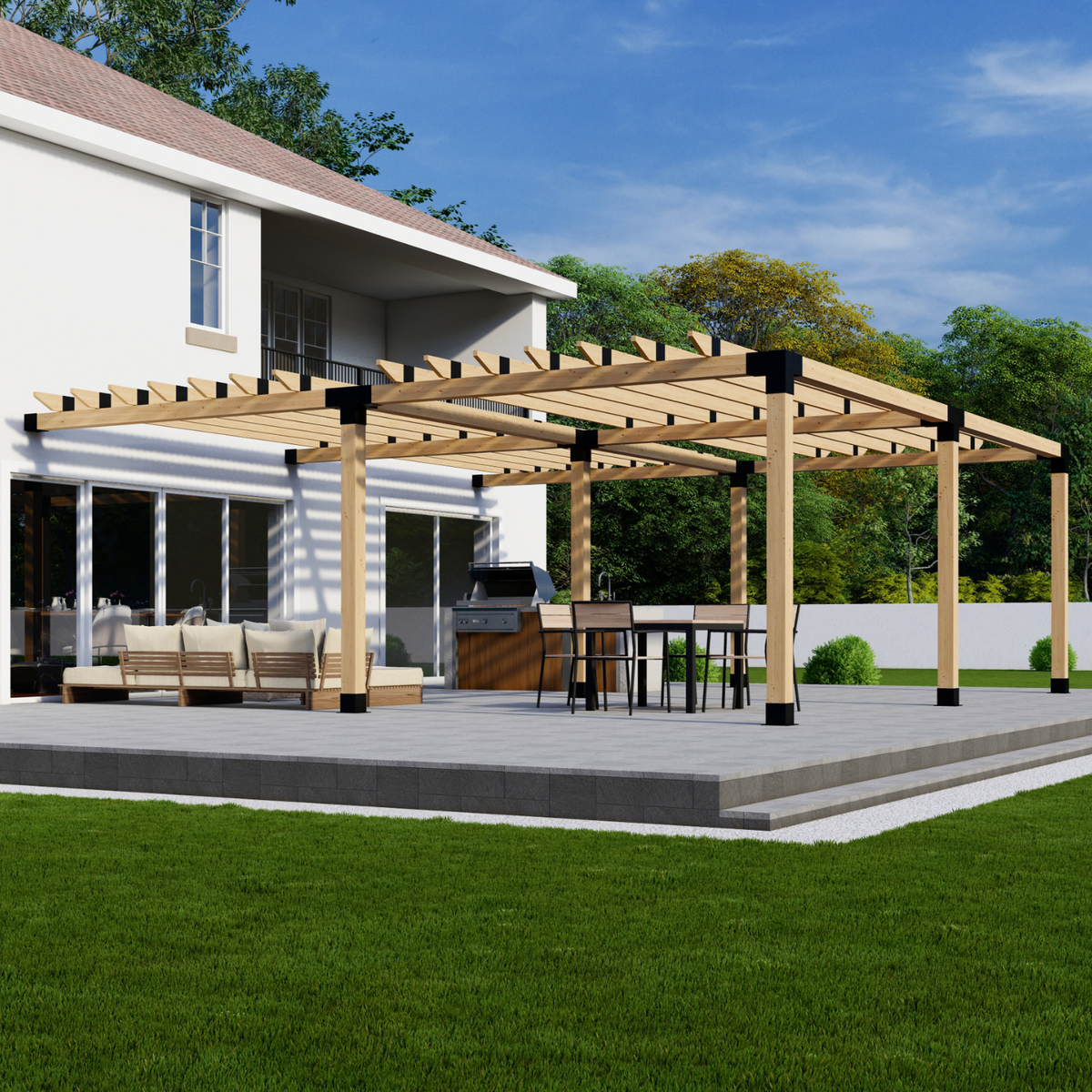

Bracket kit only. Lumber and site-specific anchoring hardware are purchased separately. Completed pergola images illustrate a possible installation; furnishings and cooking equipment are not included.
