VISRACK Propane Grill Island with Sink and Refrigerator

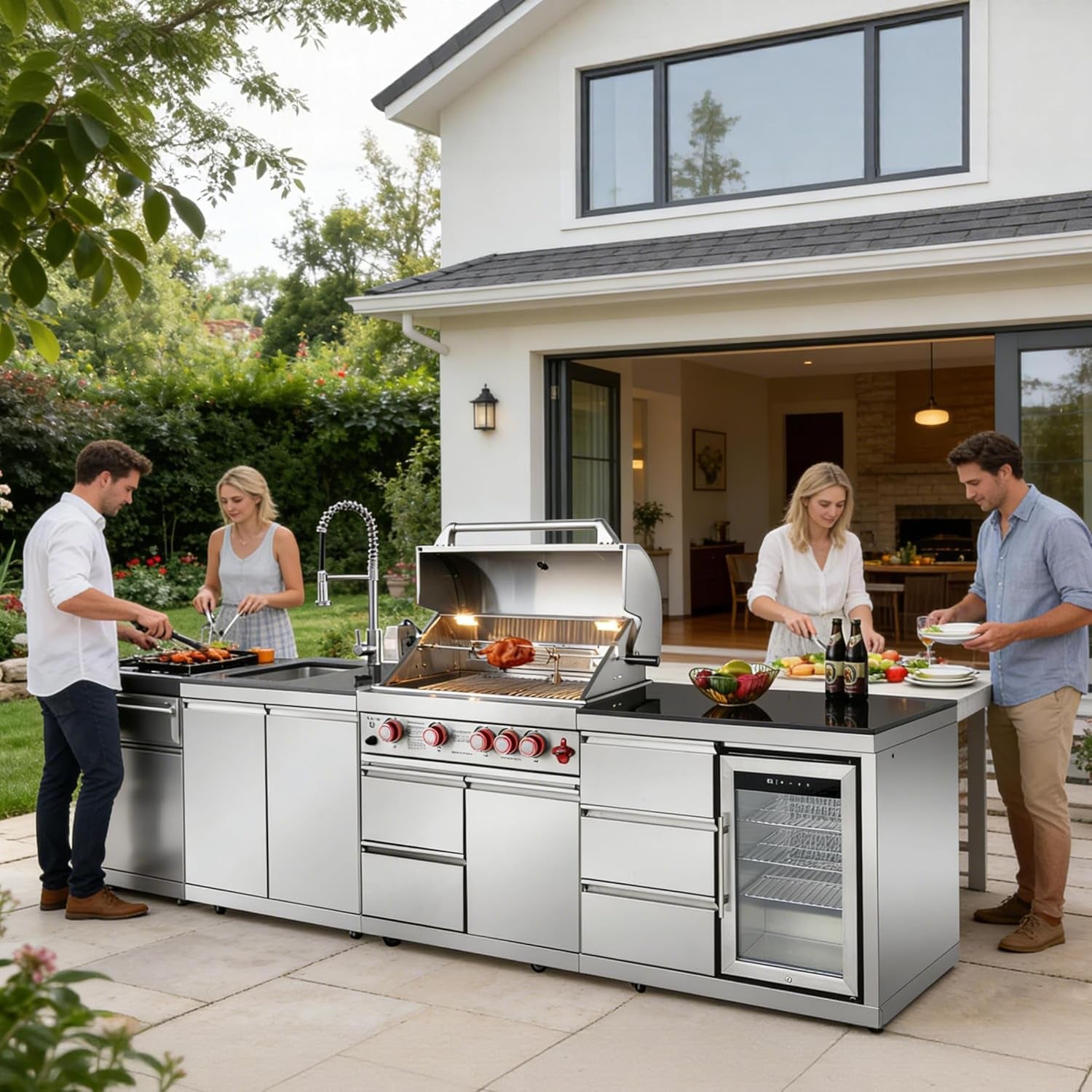

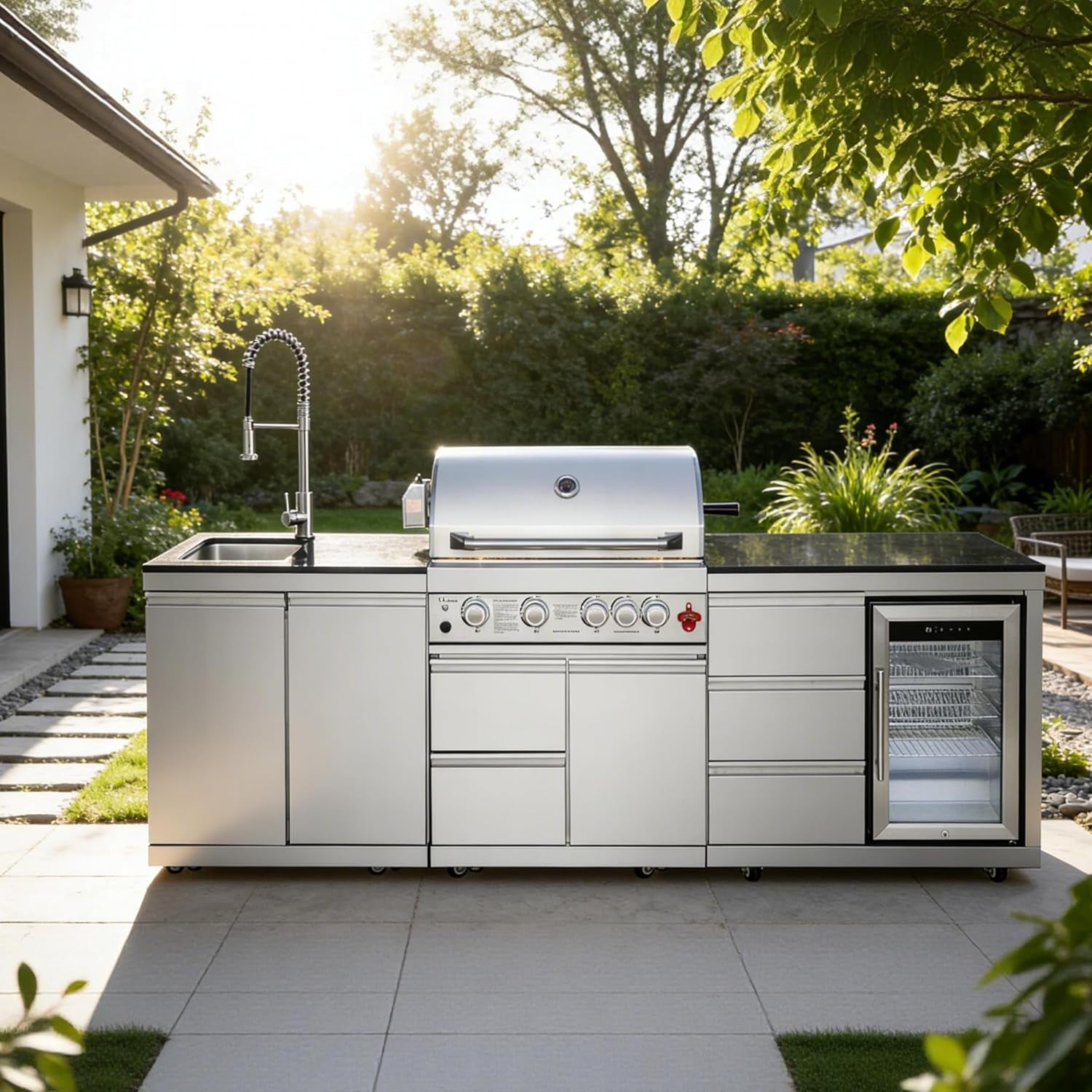

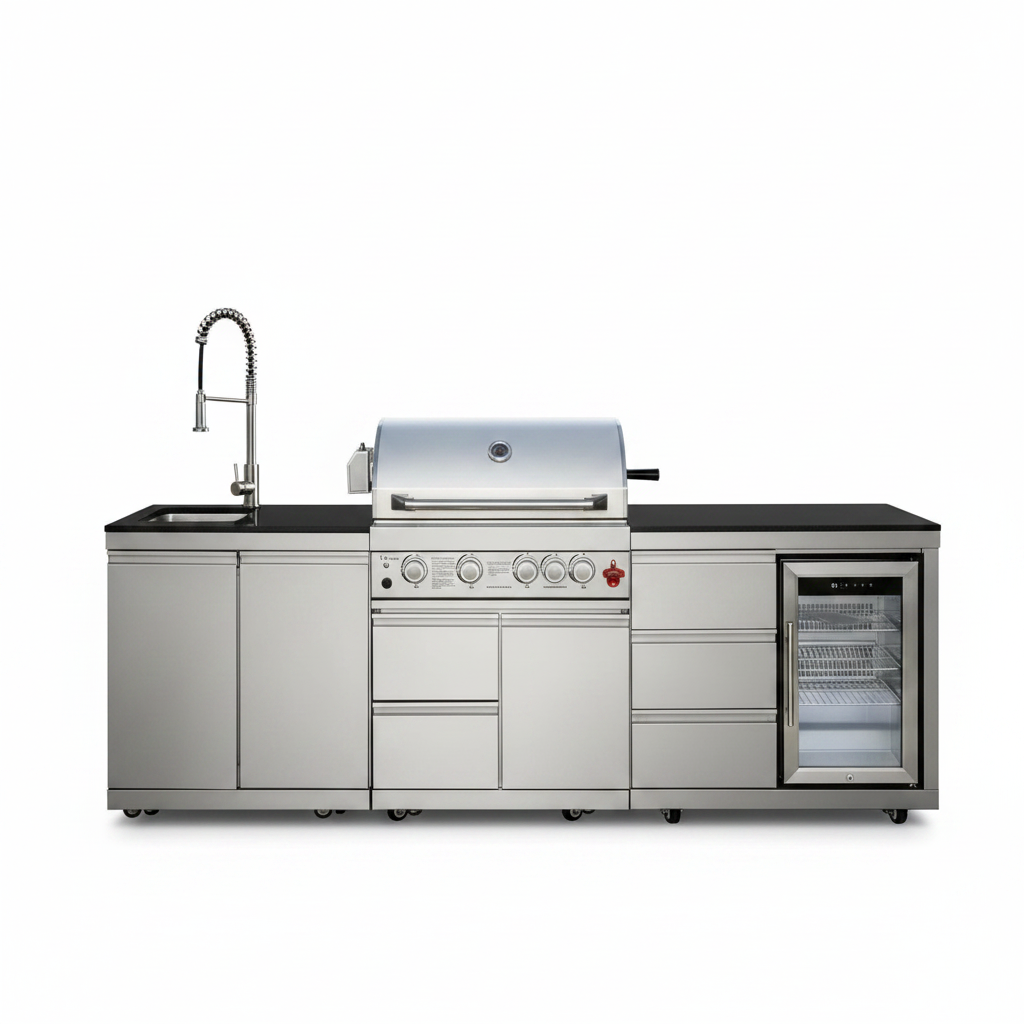

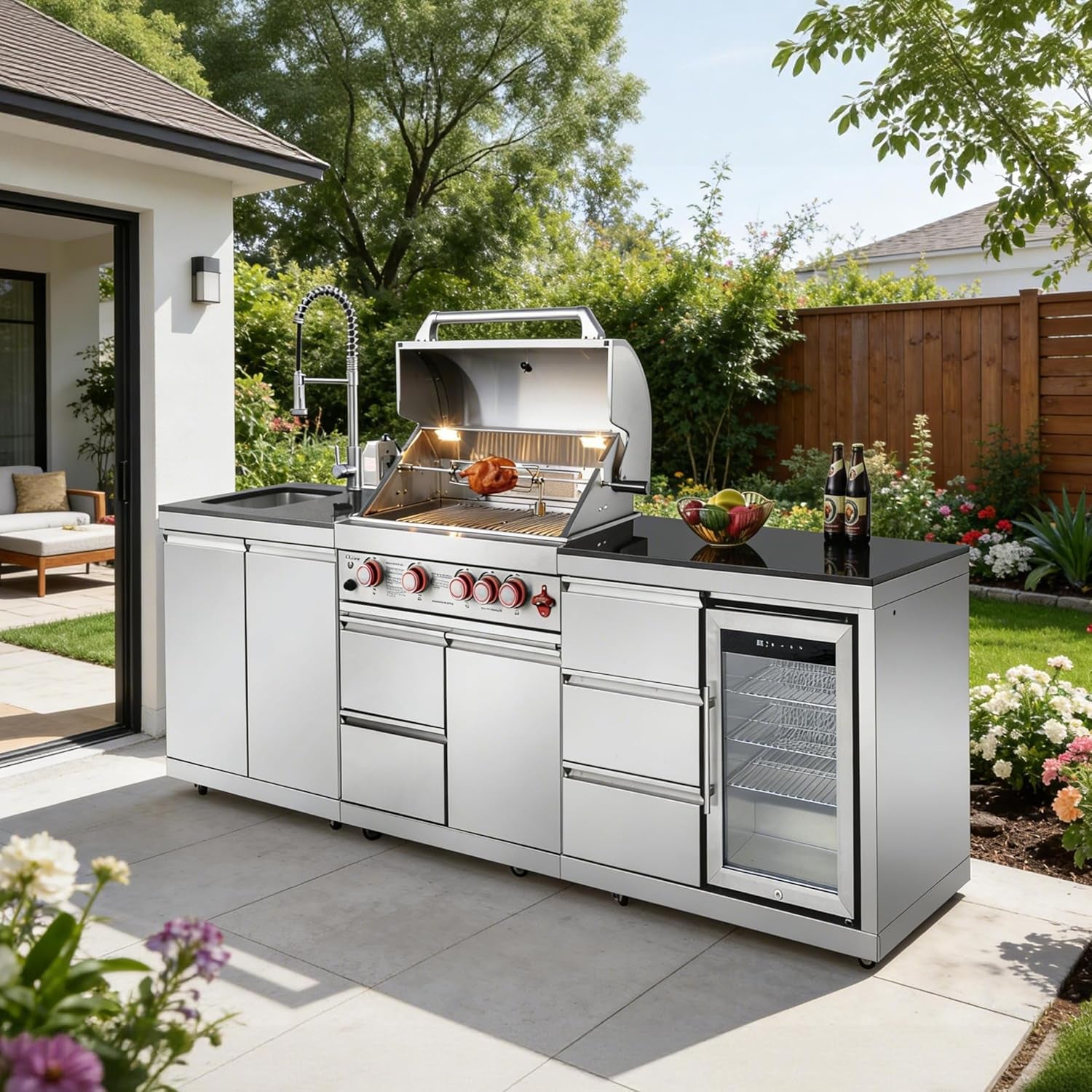

This is a propane grill island with four main burners, a rear infrared burner, sink and outdoor-rated glass-door refrigerator. The 102.4-inch modular kitchen combines grilling, rotisserie cooking, washing and chilled storage in a silver stainless steel finish. Countertop space, drawers and cabinets provide room for preparing and serving meals when dining alfresco.

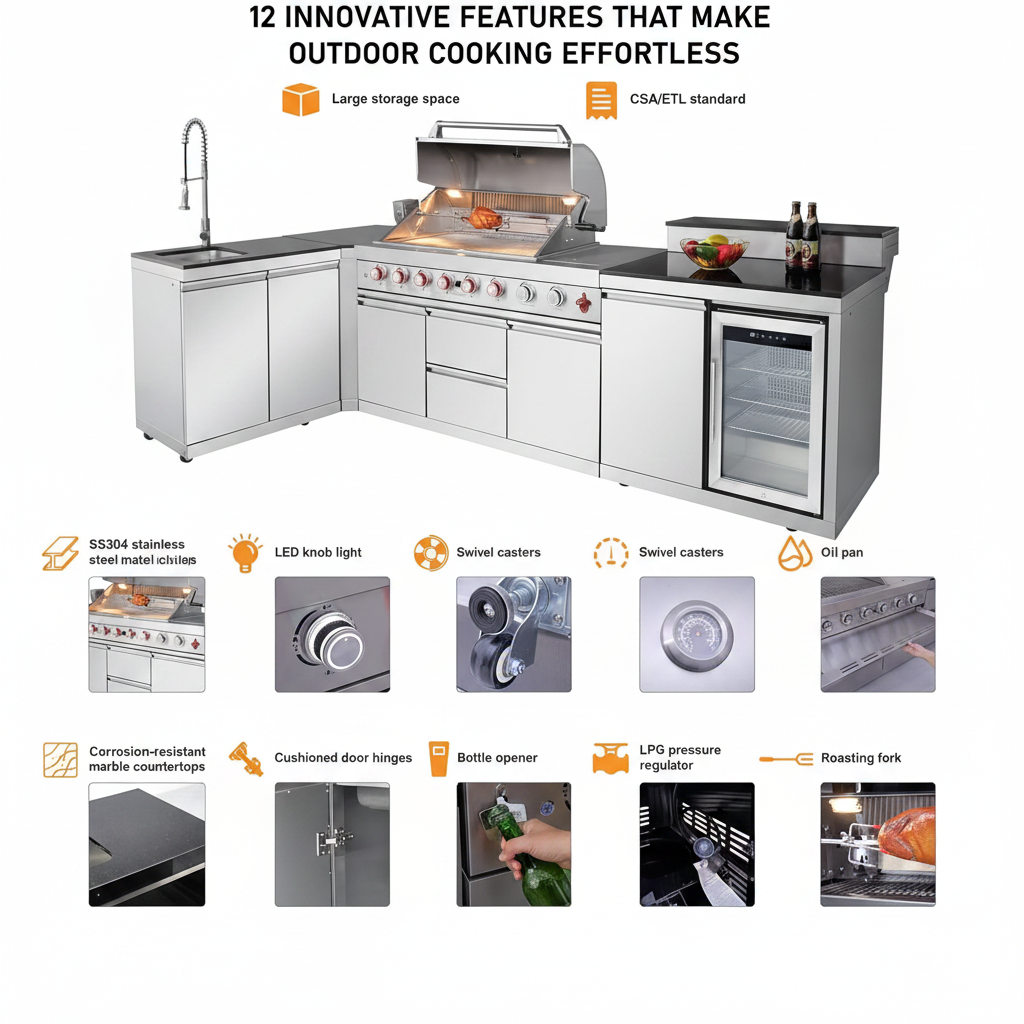

Features
- Four tubular stainless steel main burners and one ceramic infrared rear burner.
- Total system burner output of 59,500 BTU.
- 484.5-square-inch cooking surface with 8 mm stainless steel cooking grids.
- Double-lined grill hood with an integrated temperature gauge.

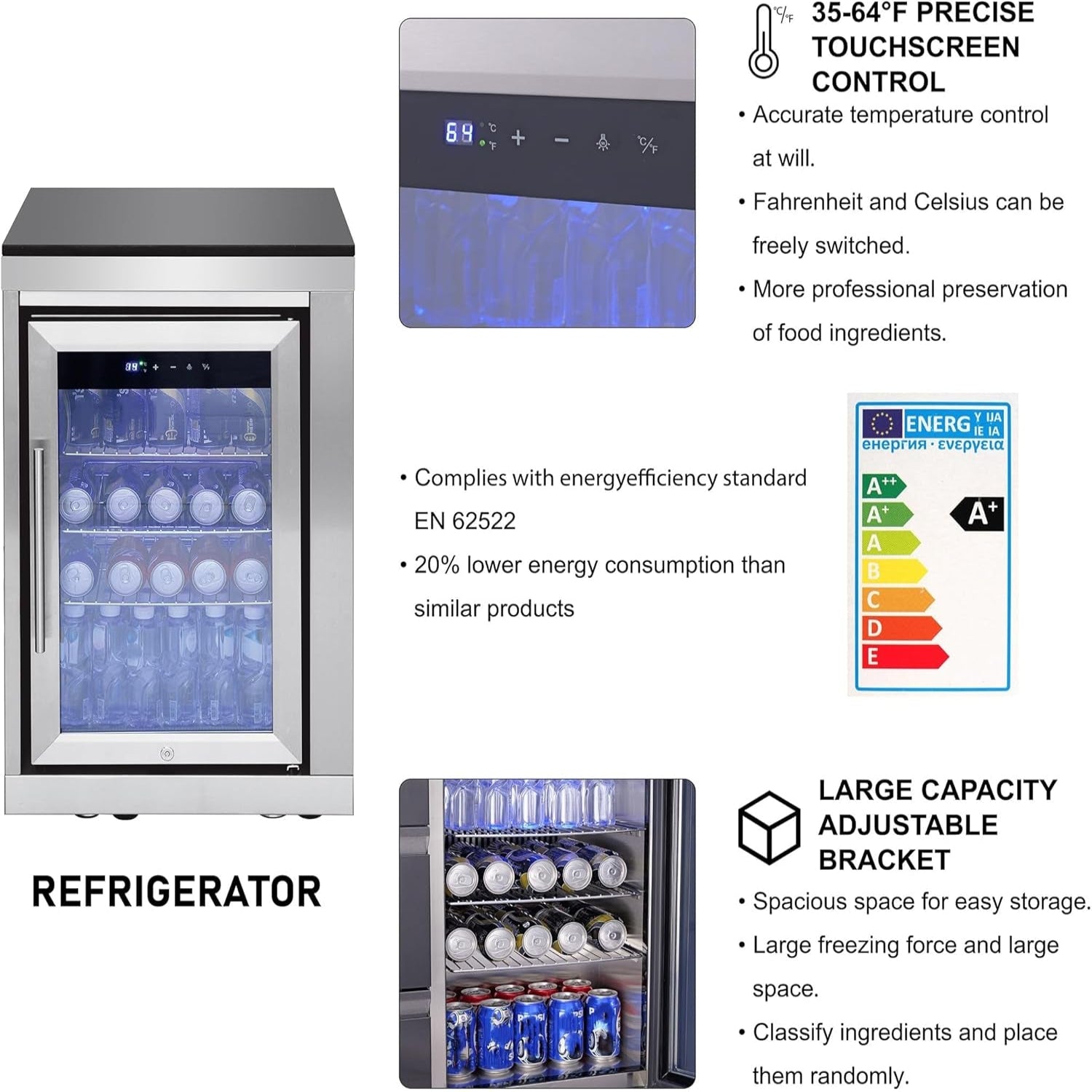

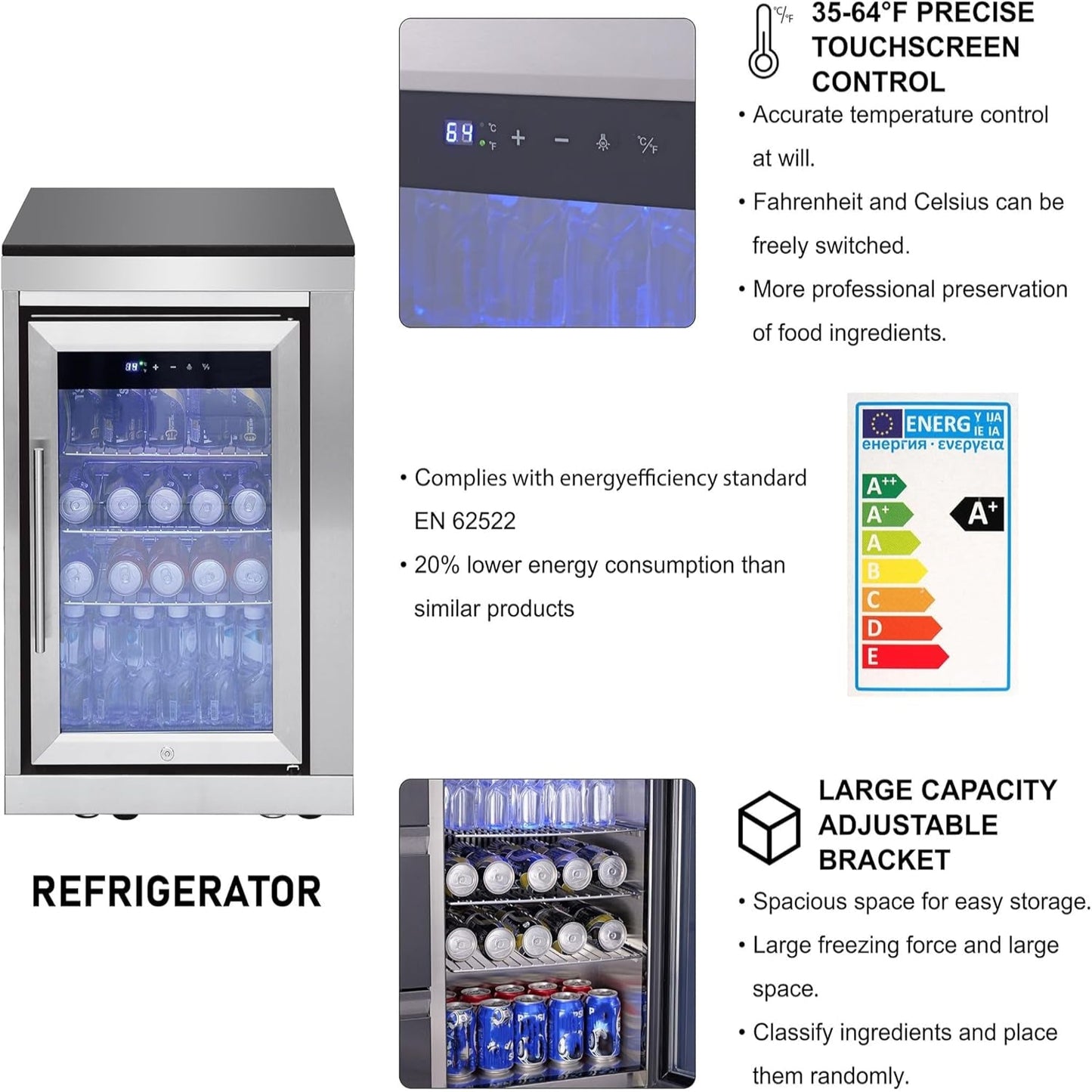

- Outdoor-rated refrigerator with a double-paned glass door, interior illumination and shelving.

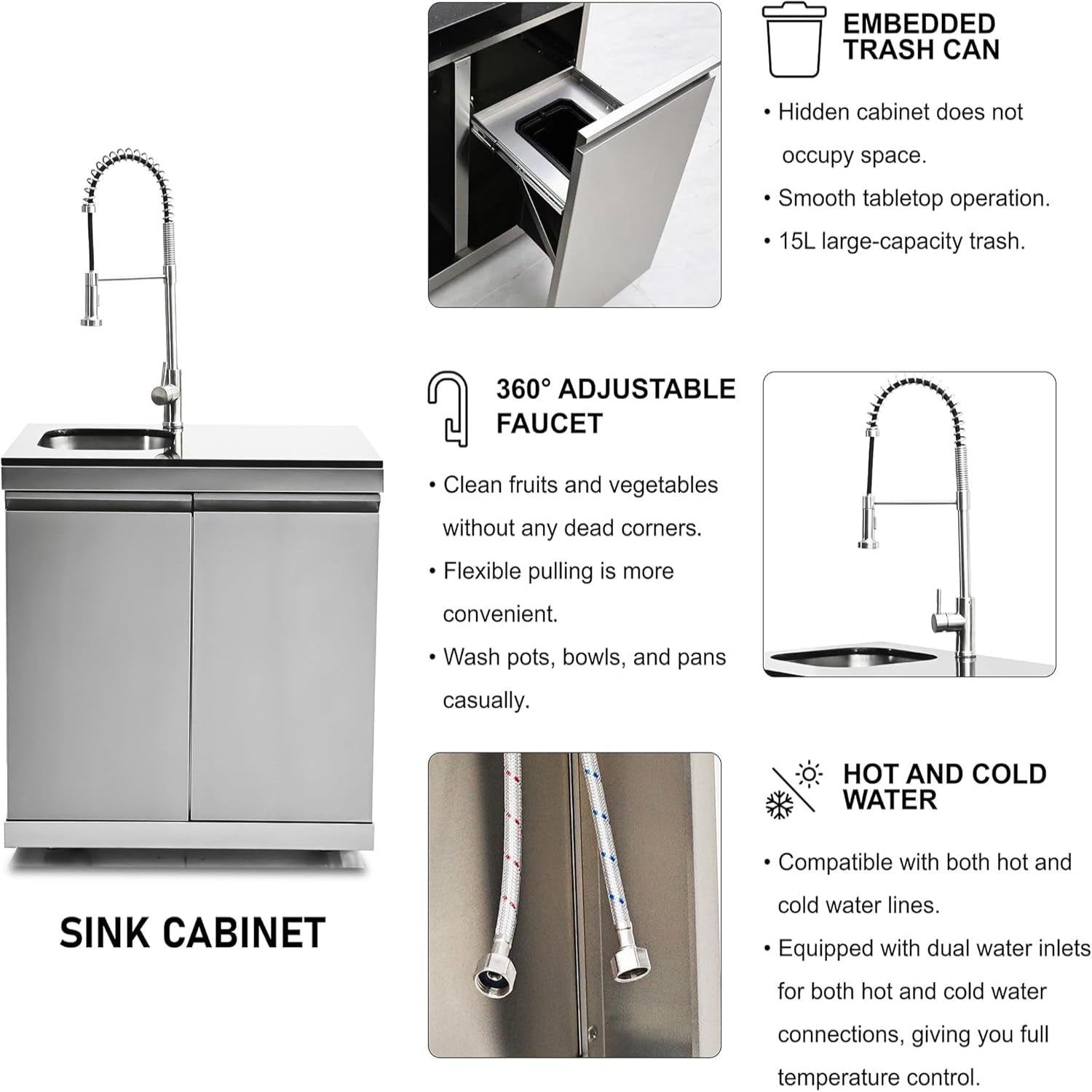

- Stainless steel sink with a 360° pull-out faucet.
- Included rotisserie kit rated for loads up to 25 lb.
- Two halogen cooking lights and red/white LED control-knob backlighting.
- Electronic pulse ignition.
- Three-drawer storage module, soft-close storage doors and pull-out propane-tank tray.
- Stainless steel and black granite countertops.
- Modular segments with joining brackets and leveling casters.
Specifications
- Brand: VISRACK
- Model: 8019109
- Product type: Propane grill island
- Fuel: Propane (LP)
- Finish: Silver
- Frame material: 304 stainless steel
- Countertop materials: 5 mm brushed stainless steel and black granite
- Main burners: Four tubular stainless steel burners
- Additional burner: Ceramic infrared rear burner
- Total system burner output: 59,500 BTU
- Cooking area: 484.5 square inches
- Cooking surface dimensions: Approximately 28.5 × 17 inches
- Cooking-grid thickness: 8 mm
- Overall width: 102.4 inches
- Main chassis depth: 22.68 inches
- Countertop height: 35.51 inches
- Approximate total height including rear hood assembly: 47–48 inches
- Sink basin capacity: Approximately 1 cubic foot
- Rotisserie motor: 120V, 4 watts
- Rotisserie load capacity: Up to 25 lb
- Electrical supply: Outdoor-rated grounded 120V / 60Hz outlet
- Product weight: 590 lb
- Assembly required: Yes
What’s Included
- Modular 304 stainless steel frame and countertop assembly.
- Four-burner propane grill head with rear infrared burner, double-lined hood and temperature gauge.
- Outdoor-rated glass-door refrigerator.
- Stainless steel sink and pull-out faucet.
- Rotisserie kit.
- Three-drawer storage module, soft-close storage doors and propane-tank sliding tray.
- Two halogen cooking lights, electronic pulse ignition and LED control-knob lighting.
- Low-pressure propane regulator and hose assembly.
- Joining brackets, leveling casters and basic module-connection hardware.
Assembly and Utility Requirements
The modular segments arrive factory preassembled. Final bolting is required to join the modules together.
The grill is configured for propane and includes a low-pressure regulator and hose assembly. The refrigerator, ignition, control-knob lighting and halogen cooking lights require an outdoor-rated grounded 120V / 60Hz electrical outlet. The rotisserie motor operates on 120V.
The sink requires a water-supply connection and grey-water drainage through a suitable drainage connection or collection container.
Follow the manufacturer’s instructions for assembly, placement, operating clearances, propane connections, electrical connections and plumbing. Product dimensions are not operating-clearance requirements.
Shipping and Returns
Review our Shipping Policy and Return Policy before ordering.
Common Questions
What fuel does the grill use?
Propane (LP). A low-pressure regulator and hose assembly are included.
How many burners does it have?
Four main burners and one ceramic infrared rear burner.
How large is the cooking area?
484.5 square inches, measuring approximately 28.5 × 17 inches.
Does it include a refrigerator and sink?
Yes. It includes an outdoor-rated glass-door refrigerator and a stainless steel sink with a pull-out faucet.
Is a rotisserie kit included?
Yes. The included kit has a 120V, 4-watt motor and supports loads up to 25 lb.
Does it require assembly?
Yes. The factory-preassembled modular segments require final bolting to join them together.
